RB Series 4 Channel Analogue Input Modules Ultra Slim 16 Bit RB-4454
Category:
Ultra Slim Card Type I/O Modules
Price:
USD $93.40
Payment Method:
Western Union, MoneyGram, T/T
Specifications
Operating Ambient Temperature:
-10℃-55℃
Working Ambient Humidity:
10%-95% No Condensation
Height Of Working Environment:
<2000m
Use Ambient Air:
Non-corrosive
EMC Level:
Zone A
Class Of Protection:
IP40
Material:
ABS+PC
Customize Or Not:
Customized
Protection Class:
IP20
Storage Temperature:
40℃～70℃
Relative Humidity:
5% ~ 95%
Highlight:
analogue input modules ultra slim
,analogue input modules 16 bit
,4 channel analogue input modules
Introduction

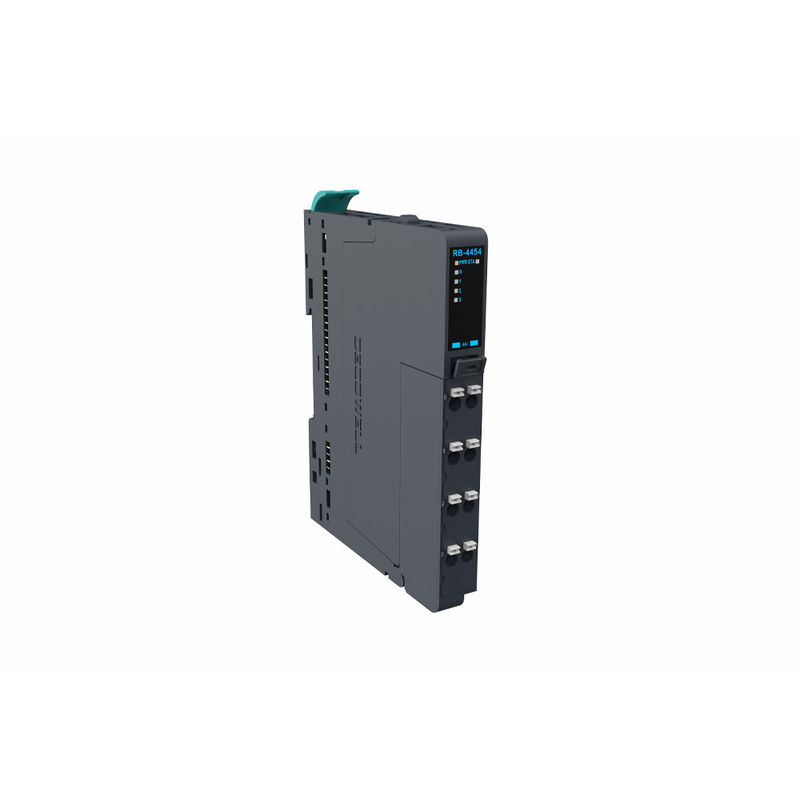

RB Series Ultra Slim Card Type I/O Analogue Input Modules RB-4454
| Product Model | RB-4454 |
| Pseudolaric acid | 4-channel analogue input module (current type) |
| Current Consumption | 82mA |
| Number of Output Channels | 4 |
| Filter Rating | Configurable:0-3, default: 1 |
| Analogue Range | 0-20mA/4-20mA switchable |
| Input Impedance | 100KΩ |
| Resolution | 16-bit |
| Absolute Maximum Input | 30mA |
| Corresponding Code Value | 0~27648/0~30000/0~32767 Switchable |
| Isolated Withstand Voltage | No isolation between 500V channels on the field side and digital side |
| Maximum Resolution | 0.0005 |
| Size Specification | 12×100×77mm |
| Weights | 70g |
| Operating/Storage Temperature | -20℃～55℃/-40℃～70℃ |
| Relative Humidity | 5% ~ 95% |
| Protection Class | IP20 |
Send RFQ
Stock:
MOQ:
1 pieces
