EX Series Digital Input Expansion Module CANopen Adapter Module EX-1050

Name: EX Series Digital Input Expansion Module CANopen Adapter Module EX-1050
Brand: Nanjing Decowell Automation Co., Ltd.
SKU: EX-1050
Price: 75.59 USD
Availability: InStock

Brand Name:	DECOWELL
Model Number:	EX-1050
MOQ:	1 pieces
Delivery Time:	5-8 workdays
Payment Terms:	5-8 word days

Detail Information

Product Description

Detail Information

Place of Origin:

China nanjing

Certification:

CE/ISO9001/UL

Material:

ABS+PC

Customize Or Not:

Customized

Protection Class:

IP20

Operating Ambient Temperature:

-10℃-55℃

Storage Temperature:

-20~85ºC

Packaging Details:

Carton packing，LxW90x67x34mm

Supply Ability:

1000000pieces/Year

Highlight:

automation solutions canopen adapter module

canopen expansion module

digital input canopen adapter module

Product Description

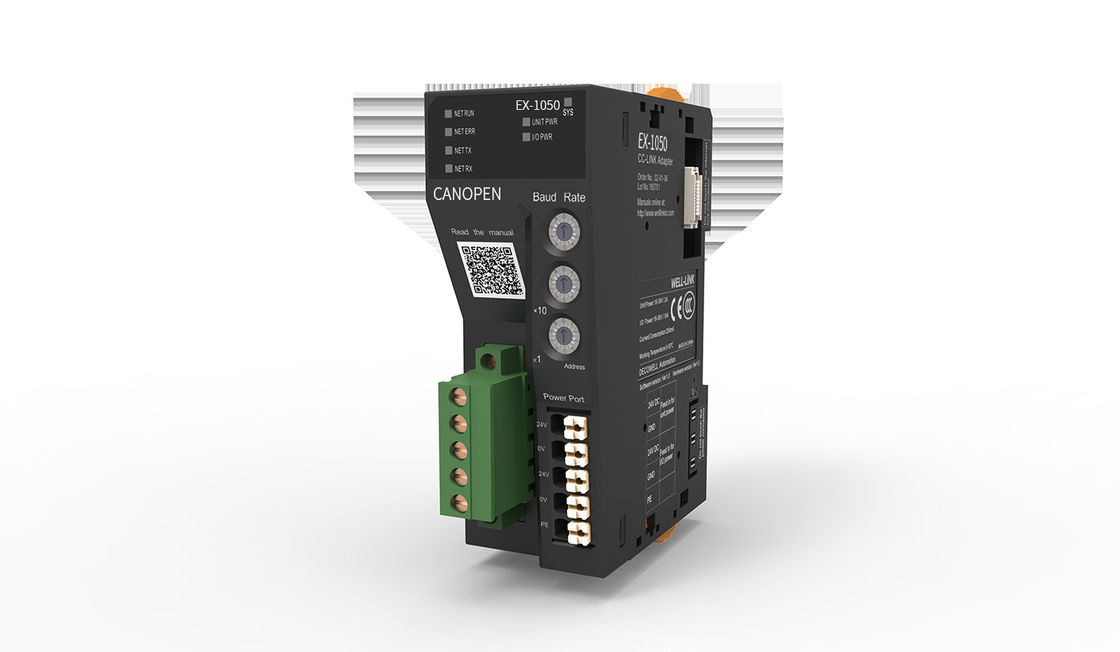

EX series Digital Input Module CANopen adapter EX-1050

Product name	CANopenAdapter
Address setting	1～99( Dial setting)
Cable	CANopen special cable
Transmission distance	1000m (Depends on the cable and communication rate)
Bus rate	10kbps,20kbps,50kbps,100kbps,125kbps,250kbps, 500kbps,1000kbps ( Dial setting)
EX System power input	24VDC(18～36V)
EX System provides current	2A(Max)
IO port power supply input	DC24V(± 20%)
IO port current output	10A(Max)
Expand the number of I/ O	32
Input/output maximum bytes	512 bytes/512 bytes
Dimensions	Length, width and height: 90mm67mm34mm
Temperature range	Working temperature:0 ～ 55℃ Storing temperature:-20 ～ +85℃
Relative humidity	95% No Condensation
Protection grade	IP20

EX Series Digital Input Expansion Module CANopen Adapter Module EX-1050 0
