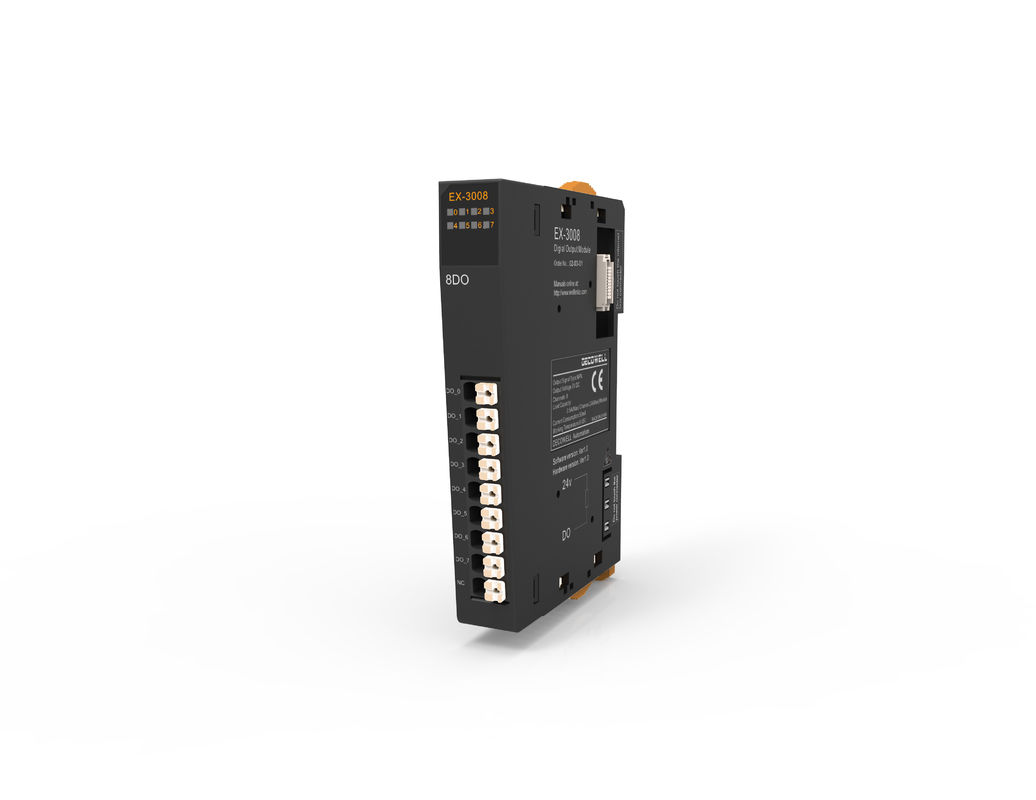

Industrial Automation PLC Digital Output Module 8 Channel DO Module NPN EX-3008
Category:
Expansion I/O Module
Price:
USD $26.60-37.99
Payment Method:
5-8 word days
Specifications
Material:
ABS+PC
Customize Or Not:
Customized
Protection Class:
IP20
Operating Ambient Temperature:
-10℃-55℃
Storage Temperature:
-20~85ºC
Highlight:
industrial automation digital output module
,90mmx67mmx14mm do module
,eight channel digital output dc module
Introduction
| Product name | EX-3008 |
| Current Consumption | 50mA |
| Number of Input Channel | 8 |
| Input Signal Type | NPN |
| Rated Input Voltage | NPN:0V DC(±3%) |
| Single-channel Rated Current |
Max:0.5A (Total Output Current of 8 Channels at the same time:2A) |
| Load type | Resistive load, inductive load, lamp load |
| Isolated withstand voltage | 500V |
| Debounce time | Configurable :1 ～ 10ms, Default :3ms |
| Isolated withstand voltage | 500V |
| Isolation mode | Optocoupler isolation |
| Debounce time | Configurable:1 ～ 10ms, Default:3ms |
| Dimensions | Length, width and height:90mm*67mm*14mm |
| Temperature range | 0 ～ 55℃ |
| Storing Temperature | -20 ～ 85℃ |
| Relative humidity | 95% No Condensation |
| Protection grade | IP20 |
Send RFQ
Stock:
MOQ:
1 pieces
