Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Expansion I/O Module
Created with Pixso. EX Series IP20 Temperature Module 4 Channel RTD Input Module PT100 EX-4754
  • name
  • name

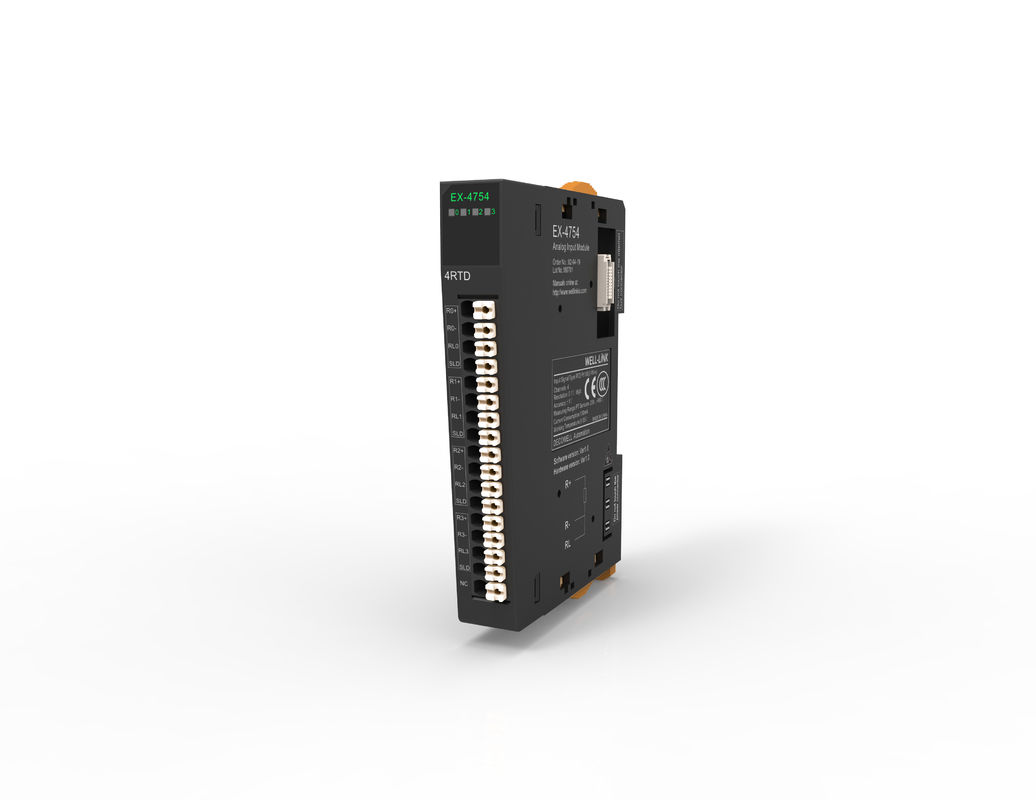

EX Series IP20 Temperature Module 4 Channel RTD Input Module PT100 EX-4754

Brand Name: DECOWELL
Model Number: EX-4654
Delivery Time: 5-8 workdays
Detail Information
Product Description
Detail Information
Place of Origin:
China nanjing
Certification:
CE/ISO9001/UL
Material:
ABS+PC
Customize Or Not:
Customized
Protection Class:
IP20
Operating Ambient Temperature:
-10℃-55℃
Storage Temperature:
-20~85ºC
Highlight:

38mA thermal resistance input module

,

temperature module 4 channel

,

IP20 thermal resistance input module

Product Description

EX series Temperature Module4-channel RTD input module (2-wire or 3w-wire(default)) PT100 EX-4754





Product name EX-4754
Current Consumption 38mA
Number of Input Channel 4
Input filtering Configurable:1～40,Default:10
Connection mode 2-wire or 3-wire system (default 3-wire)
Sensor type PT100,PT200,PT500,PT1000,Nl120
Temperature range Resistance measurement/-200～+ 800 degrees
(PT sensor)-79～+ 309 degrees(NI sensor)
Resolution 0.1℃/ digit
Precision ±1°C
Isolated withstand voltage The 500V channels on the field side and the digital
side are not isolated
Dimensions Length, width and height:90mm*67mm*14mm
Temperature range 0 ～ 55℃
Storing Temperature -20 ～ 85℃
Relative humidity 95% No Condensation
Protection grade IP20



EX Series IP20 Temperature Module 4 Channel RTD Input Module PT100 EX-4754 0
