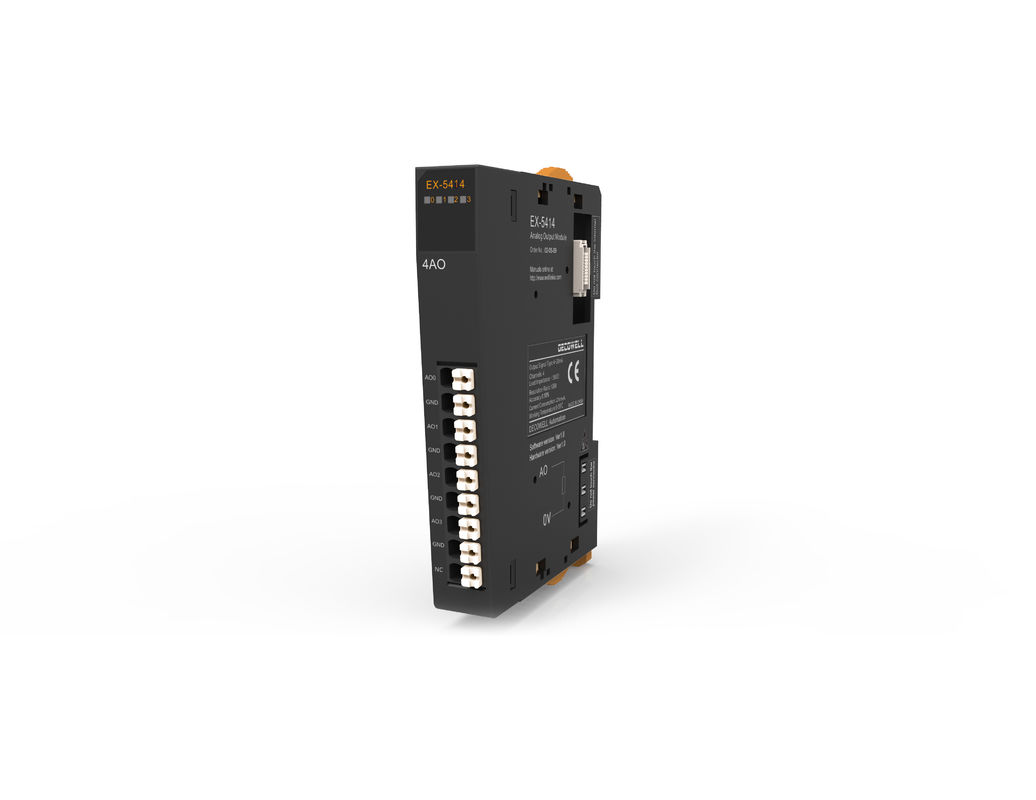

High Accuracy Plc Analog Output Module Four Channel 12 Bit Resolution EX-5414
manufacturer:
DECOWELL
Category:
Expansion I/O Module
Payment Method:
5-8 word days
Specifications
Material:
ABS+PC
Customize Or Not:
Customized
Protection Class:
IP20
Operating Ambient Temperature:
-10℃-55℃
Storage Temperature:
-20~85ºC
Highlight:
12 bit resolution analog output module
,four channel plc analog output module
,high accuracy analog output modules
Introduction
EX seriesAnalog output module 4-channel 12-bit current analog output (4-20mA/0-20mA) EX-5414
| Product name | EX-5414 |
| Current Consumption | 21mA |
| Number of Input Channel | 4 |
| Analog range | 0-20mA/4-20mA |
| Load capacity | < 500Ω |
| Resolution | 12bit |
| Precision | 0.10% |
| Isolated withstand voltage | The 500V channels on the field side and the digital side are not isolated |
| Corresponding code value | 0-4095 |
| Dimensions | Length, width and height: 90mm*67mm*14mm |
| Temperature range | 0 ～ 55℃ |
| Storing Temperature | -20 ～ 85℃ |
| Relative humidity | 95% No Condensation |
| Protection grade | IP20 |
