PLC Systems Multifunctional Modules Integrated Communication Ethercat Remote I/O IP40
manufacturer:
DECOWELL
Category:
Multifunctional I/O Modules
Price:
USD $90.28
Payment Method:
Western Union, MoneyGram, T/T
Specifications
Model NO.:
EC2-S2
Customized:
Customized
Transport Package:
Cartons
Specification:
162mmX61mmX35mm
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
19.90cm * 8.50cm * 4.20cm
Package Gross Weight:
0.177kg
Function:
Automatic Control
Certification:
ISO: 9001, CE
Condition:
New
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
:
Initial Payment Full Payment
Currency:
US$90.28
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:
plc systems multifunctional modules io
,IP40 communication ethercat remote i/o
,IP40 ethercat io module
Introduction
Decowell RS Series Integrated I/O EC2-S2 Communication Module For PLC Systems
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.

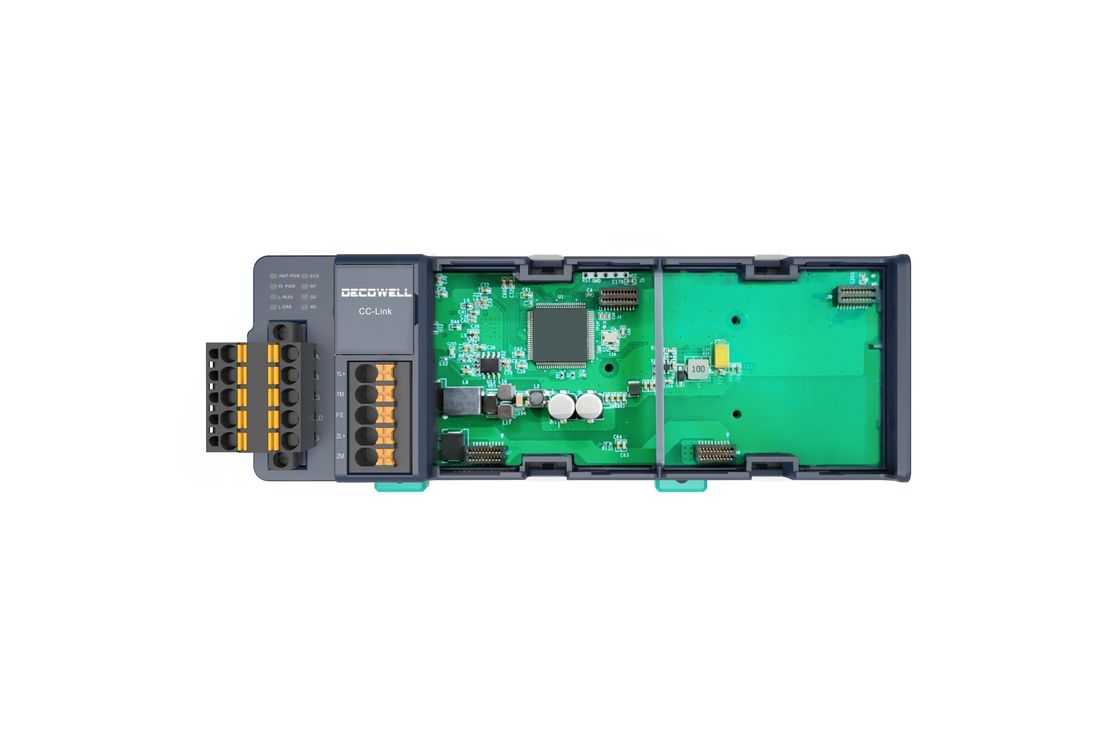

Decowell RS series integrated I/O EC2-S2 Communication Module
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.
| Bus protocol | EtherCAT |
| Communication distance | 100m(distance from station to station) |
| Bus communication rate | 100Mbps |
| Communication cycle | Depends on EtherCAT master specifications |
| Refresh mode | Free running, DC synchronous running refresh |
| topology | Depends on the EtherCAT master specification |
| Node address | Configurable 0-192 (PLC only valid for Omron) |
| Input/output bytes | 128 |
| Enter/out the mailbox size | 256 |
| System power input | DC24V(18-30V) |
| IO power input | DC24V(18-30V) |
| The IO power supply provides current | 10A |
| Overcurrent protection | YES |
| Anti-reverse connection protection | YES |
| System side electrical isolation | YES |
| Operating ambient temperature | -10°C-55°C |
| Working ambient humidity | 10%-95% no condensation |
| Height of working environment | <2000m |
| Use ambient air | non-corrosive |
| EMC level | Zone A |
| Class of protection | IP40 |
