Decowell RS Series PLC Communication Module 105.5mmX61mmX35mm for Automatic Control

manufacturer:
DECOWELL
Category:
Multifunctional I/O Modules
Price:
USD $94.00
Payment Method:
Western Union, MoneyGram, T/T
Specifications
Model NO.:
PN2-S1
Customized:
Customized
Material:
ABS+PC
OEM:
Yes
ODM:
Yes
Bus Protocol:
Profinet
Class Of Protection:
IP40
Transport Package:
Cartons
Specification:
105.5mmX61mmX35mm
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
13.90cm * 8.50cm * 4.10cm
Package Gross Weight:
0.138kg
Function:
Automatic Control
Certification:
ISO: 9001, CE
Condition:
New
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$94.00
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

decowell plc communication module

,

Automatic Control plc communication module

Introduction

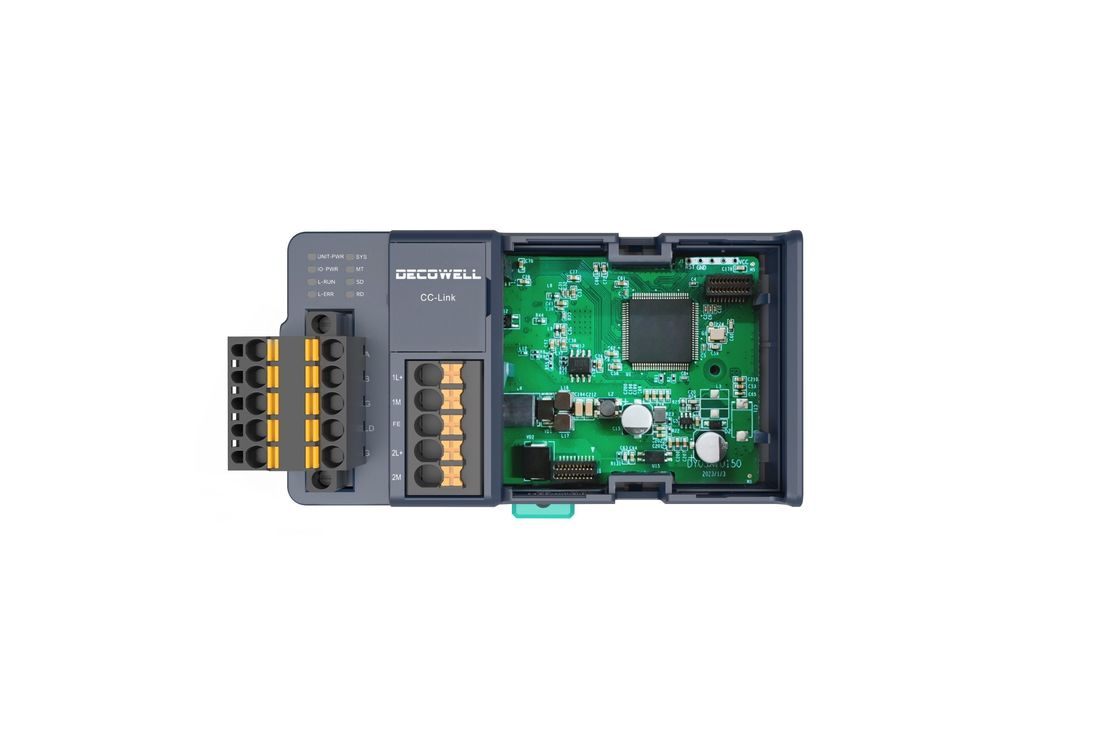

Decowell RS Series PLC Communication Module 105.5mmX61mmX35mm for Automatic Control

Product Description

Decowell RS series integrated I/O PN2-S1 Communication Module

RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively

Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.
Product Parameters



Bus protocol PROFINET
Communication distance 100m(distance from station to station)
Bus communication rate 100Mbps
topology Depends on PROFINET master specifications
Device name Dip switch setting or software allocation
System power input DC24V(18-30V)
The system power supply provides current 2A
IO power input DC24V(18-30V)
The IO power supply provides current 10A
Overcurrent protection YES
Overvoltage protection NO
Anti-reverse connection protection YES
System side electrical isolation YES
Operating ambient temperature -10°C-55°C
Working ambient humidity 10%-95% no condensation
Height of working environment <2000m
Use ambient air non-corrosive
EMC level Zone A
Class of protection IP40
Detailed Photos

Decowell RS Series Integrated I/O Pn2-S1 Communication Module, for PLC

Company Profile

Decowell RS Series Integrated I/O Pn2-S1 Communication Module, for PLC

Certifications

Decowell RS Series Integrated I/O Pn2-S1 Communication Module, for PLC

Application Industry

Decowell RS Series Integrated I/O Pn2-S1 Communication Module, for PLC

Exhibition

Decowell RS Series Integrated I/O Pn2-S1 Communication Module, for PLC
