Decowell EtherNet IP Multifunctional Modules , Communication IO Module DC24V IP40
Specifications
Model NO.:
EI2-S2
Customized:
Customized
Material:
ABS+PC
OEM:
Yes
ODM:
Yes
Bus Protocol:
Ethernet/IP
Class Of Protection:
IP40
Transport Package:
Cartons
Specification:
162mmX61mmX35mm
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
19.90cm * 8.50cm * 4.20cm
Package Gross Weight:
0.176kg
Function:
Automatic Control
Certification:
ISO: 9001, CE
Condition:
New
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$82.85
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:
ethernet ip multifunctional modules
,decowell communication io module
,communication io module IP40
Introduction

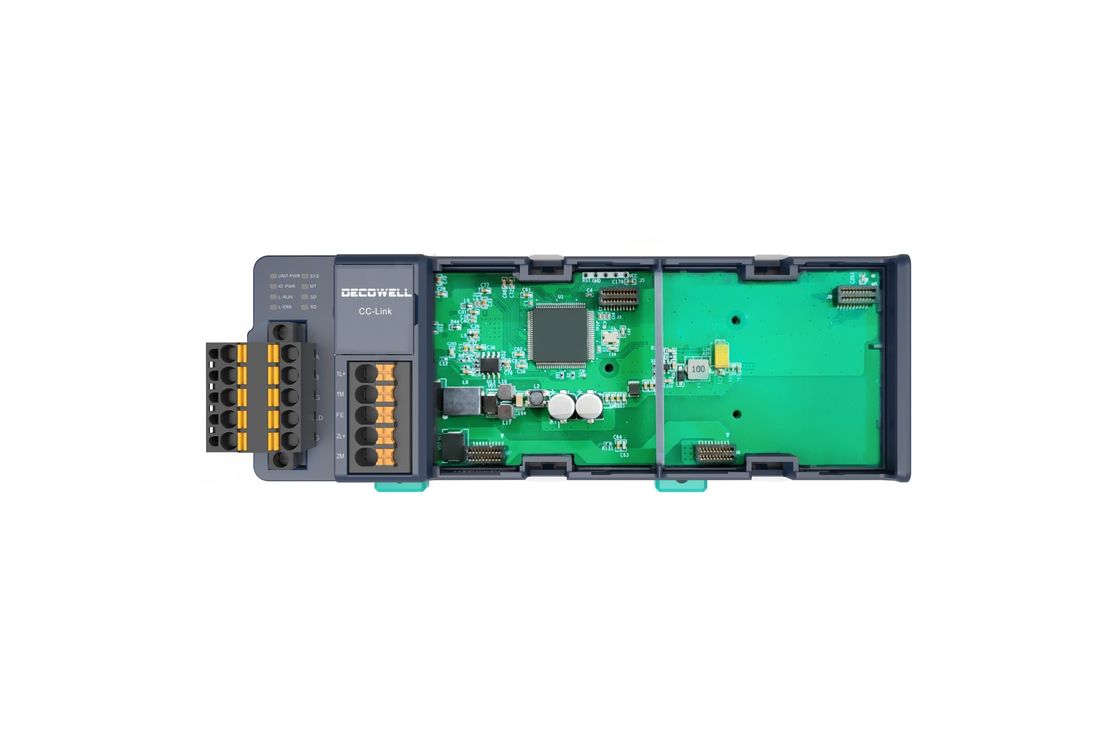

Decowell RS Series Integrated I/O EI2-S2 Communication Module for Customization Needs
Decowell RS series integrated I/O EI2-S2 Communication Module.
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.
Bus protocol | EtherNet/IP |
Communication distance | 100m(distance from station to station) |
Bus communication rate | 100Mbps |
topology | Depends on EtherNet/IP master specifications |
Device name | Software distribution |
System power input | DC24V(18-30V) |
The system power supply provides current | 2A |
IO power input | DC24V(18-30V) |
The IO power supply provides current | 10A |
Overcurrent protection | YES |
Overvoltage protection | NO |
Anti-reverse connection protection | YES |
System side electrical isolation | YES |
Operating ambient temperature | -10°C-55°C |
Working ambient humidity | 10%-95% no condensation |
Height of working environment | <2000m |
Use ambient air | non-corrosive |
EMC level | Zone A |
Class of protection | IP40 |
