Integrated CC-Link LE Remote Io Modules Communication Module Automatic Control
Specifications
Model NO.:
CI2-S1
Customized:
Customized
Material:
ABS+PC
OEM:
Yes
ODM:
Yes
Bus Protocol:
Cc-Link Le Field Basic
Class Of Protection:
IP40
Transport Package:
Cartons
Specification:
105.5mmX61mmX35mm
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
13.90cm * 8.50cm * 4.10cm
Package Gross Weight:
0.135kg
Function:
Automatic Control
Certification:
ISO: 9001, CE
Condition:
New
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$80.17
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:
Automatic Control Integrated Io Modules
,Communication remote io modules
,CC-Link LE Remote Io Modules
Introduction

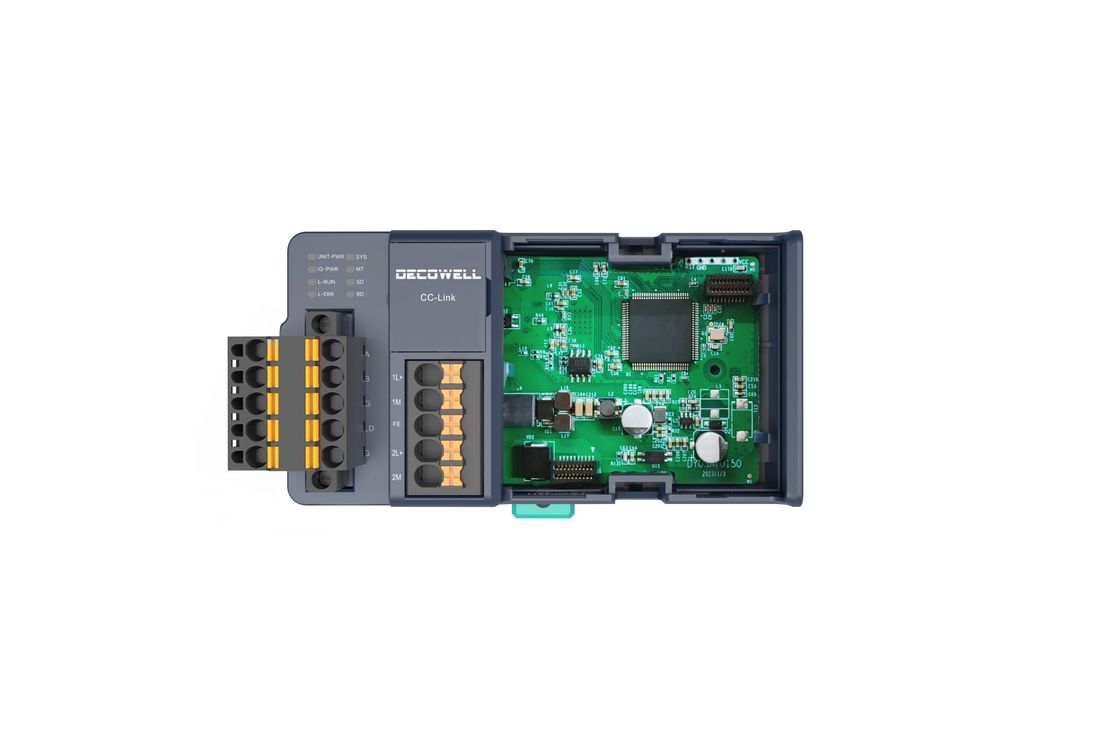

Decowell RS Series Integrated I/O CI2-S1 Communication Module Automatic Control CC-Link lE
Decowell RS series integrated I/O CI2-S1 Communication Module.
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.
Bus protocol | CC-Link lE Field Basic |
Communication distance | 100m(distance from station to station) |
Bus communication rate | 100Mbps |
System power input | DC24V(18-30V) |
The system power supply provides current | 2A |
IO power input | DC24V(18-30V) |
The IO power supply provides current | 10A |
Overcurrent protection | YES |
Overvoltage protection | NO |
Anti-reverse connection protection | YES |
System side electrical isolation | YES |
Operating ambient temperature | -10°C-55°C |
Working ambient humidity | 10%-95% no condensation |
Height of working environment | <2000m |
Use ambient air | non-corrosive |
EMC level | Zone A |
Class of protection | IP40 |
