Integrated I/O 8di8do Communication Input Output Modules In PLC Decowell RS Series

Name: Integrated I/O 8di8do Communication Input Output Modules In PLC Decowell RS Series
Brand: Nanjing Decowell Automation Co., Ltd.
SKU: 8DI8DO(P-1)
Price: 75.08 USD
Availability: InStock

Brand Name:	DECOWELL
Model Number:	8DI8DO(P-1)
MOQ:	1 pieces
Delivery Time:	5-8 workdays
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China nanjing

Certification:

CE/ISO9001

Model NO.:

8DI8DO(P-1)

Customized:

Customized

Material:

PA6+15%GF

OEM:

Yes

ODM:

Yes

Class Of Protection:

IP40

Transport Package:

Cartons

Specification:

56.2mmX54.1mmX22.7

Trademark:

DECOWELL

Origin:

Nanjing

HS Code:

8538900000

Supply Ability:

1000000pieces/Year

Package Size:

8.70cm * 8.10cm * 3.00cm

Package Gross Weight:

0.057kg

Function:

Automatic Control

Certification:

ISO: 9001, CE

Condition:

New

Customization:

Available | Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$22.71

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Carton packing，LxW90x100x45.4mm.

Supply Ability:

1000000pieces/Year

Highlight:

Multifunctional Integrated I/O 8di8do

communication input output modules in plc

Product Description

Decowell RS Series Integrated I/O 8di8do P-1 Communication Module for PLC Performance

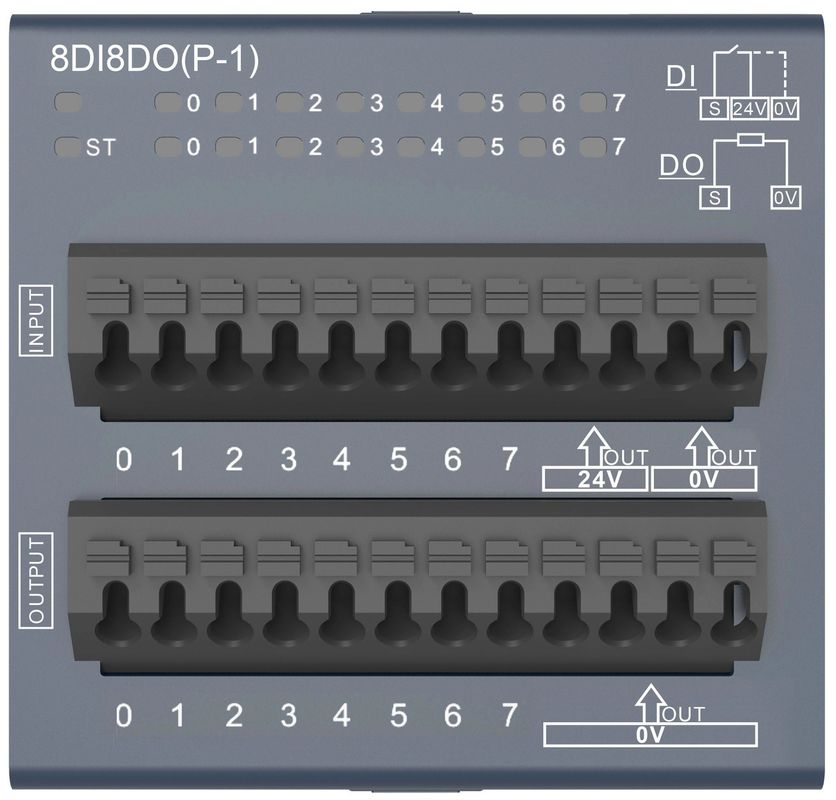

Decowell RS Series Integrated I/O 8DI8DO(P-1) Communication Module.
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively

Rated input voltage	NPN:0-5V
ON/OFF Response time	11us
Input filtering time	0 to 10ms. The default value is 3ms
Single channel current consumption	0V 5mA
Insulation mode	Optocoupler isolation
Rated output voltage	NPN:0V
ON/OFF Response time	11us
Maximum load current	0.5A (maximum total load current 2A for continuous 8 channels)
Insulation mode	Optocoupler isolation
Operating ambient temperature	-10ºC~55ºC
Relative humidity of the working environment	10% to 95% no condensation
Working environment Altitude	<2000m
Storage temperature	-20ºC-85ºC
Class of protection	IP40
