Decowell Integrated I/O Multifunctional Modules 8DI8DO PLC Communication Module
Specifications
Model NO.:
8DI8DO(P-3)
Customized:
Customized
Material:
PA6+15%GF
OEM:
Yes
ODM:
Yes
Class Of Protection:
IP40
Transport Package:
Cartons
Specification:
56.2mmX54.1mmX22.7
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
8.70cm * 8.10cm * 3.00cm
Package Gross Weight:
0.057kg
Function:
Automatic Control
Certification:
ISO: 9001, CE
Condition:
New
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$23.42
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:
plc communication module 8di8do
,integrated i/o multifunctional modules
,8di8do plc input and output devices
Introduction

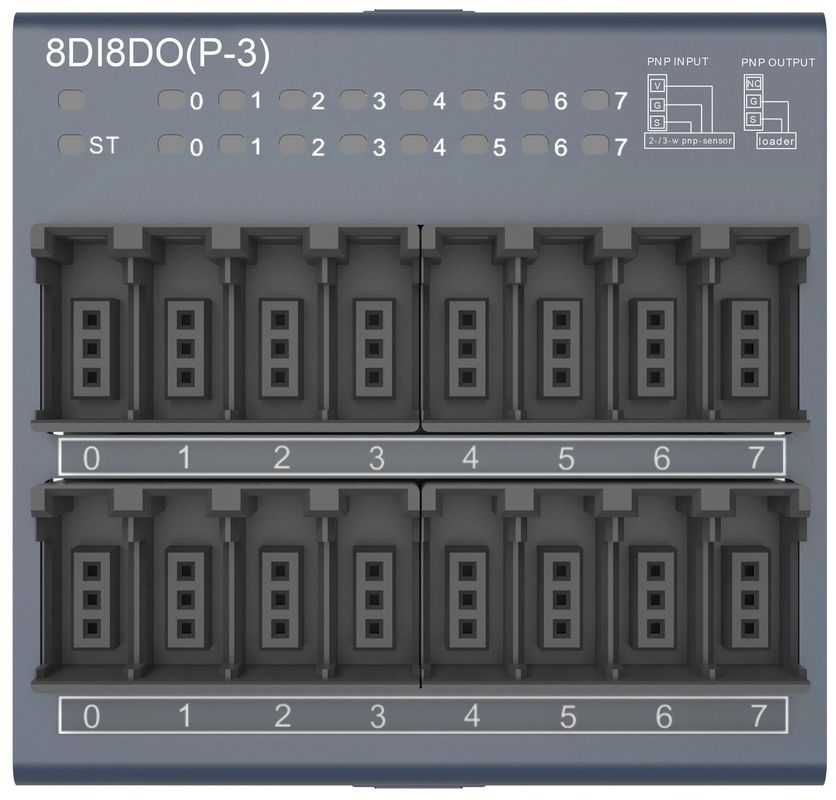

Decowell RS Series Integrated I/O 8DI8DO P-3 Communication Module for PLC IP40 Protection
Decowell RS Series Integrated I/O 8DI8DO(P-3) Communication Module.
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Rated input voltage | NPN:0-5V |
ON/OFF Response time | 11us |
Input filtering time | 0 to 10ms. The default value is 3ms |
Single channel current consumption | 0V 5mA |
Insulation mode | Optocoupler isolation |
Rated output voltage | NPN:0V |
ON/OFF Response time | 11us |
Maximum load current | 0.5A (maximum total load current 2A for continuous 8 channels) |
Insulation mode | Optocoupler isolation |
Operating ambient temperature | -10ºC~55ºC |
Relative humidity of the working environment | 10% to 95% no condensation |
Working environment Altitude | <2000m |
Storage temperature | -20ºC-85ºC |
Class of protection | IP40 |
