IP40 Protection Level Remote Io Modules Support Various Fieldbus Protocols EC2-S2
manufacturer:
DECOWELL
Category:
Multifunctional I/O Modules
Specifications
Model NO.:
EC2-S2
Condition:
New
Customized:
Customized
Working Temperature Of The Environment:
-10°c~55°c
Working Environment Relative Humidity:
10%~95% Non-Condensing
Altitude Of Working Environment:
<2000m
Protection Level:
IP40
EMC Rating:
A Zone
Transport Package:
Cartons
Specification:
162mmX61mmX35mm
Trademark:
DECOWELL
Origin:
Nanjing
HS Code:
8538900000
Supply Ability:
1000000pieces/Year
Package Size:
19.90cm * 8.50cm * 4.20cm
Package Gross Weight:
0.176kg
Task:
Program
Structure:
Combination
Function:
Automatic Control
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$90.28
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:
ip40 protection remote io modules
,support multi fieldbus remote io
Introduction

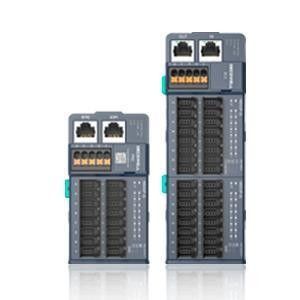

IP40 Protection Level RS Series I/O Modules Support Various Fieldbus Protocols EC2-S2
Decowell RS series integrated I/O EC2-S2 Communication Module
RS series integrated l/O modules support a variety of industrial fieldbusprotocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module componentsaccording to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively
Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.
| Bus protocol | EtherCAT |
| Communication distance | 100m(distance from station to station) |
| Bus communication rate | 100Mbps |
| Communication cycle | Depends on EtherCAT master specifications |
| Refresh mode | Free running, DC synchronous running refresh |
| topology | Depends on the EtherCAT master specification |
| Node address | Configurable 0-192 (PLC only valid for Omron) |
| Input/output bytes | 128 |
| Enter/out the mailbox size | 256 |
| System power input | DC24V(18-30V) |
| IO power input | DC24V(18-30V) |
| The IO power supply provides current | 10A |
| Overcurrent protection | YES |
| Anti-reverse connection protection | YES |
| System side electrical isolation | YES |
| Operating ambient temperature | -10°C-55°C |
| Working ambient humidity | 10%-95% no condensation |
| Height of working environment | <2000m |
| Use ambient air | non-corrosive |
| EMC level | Zone A |
| Class of protection | IP40 |
