Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Expansion I/O Module
Created with Pixso. EX-4654 High Precision Thermocouple Input Module 4 Channel For Industrial Automation
  • name
  • name

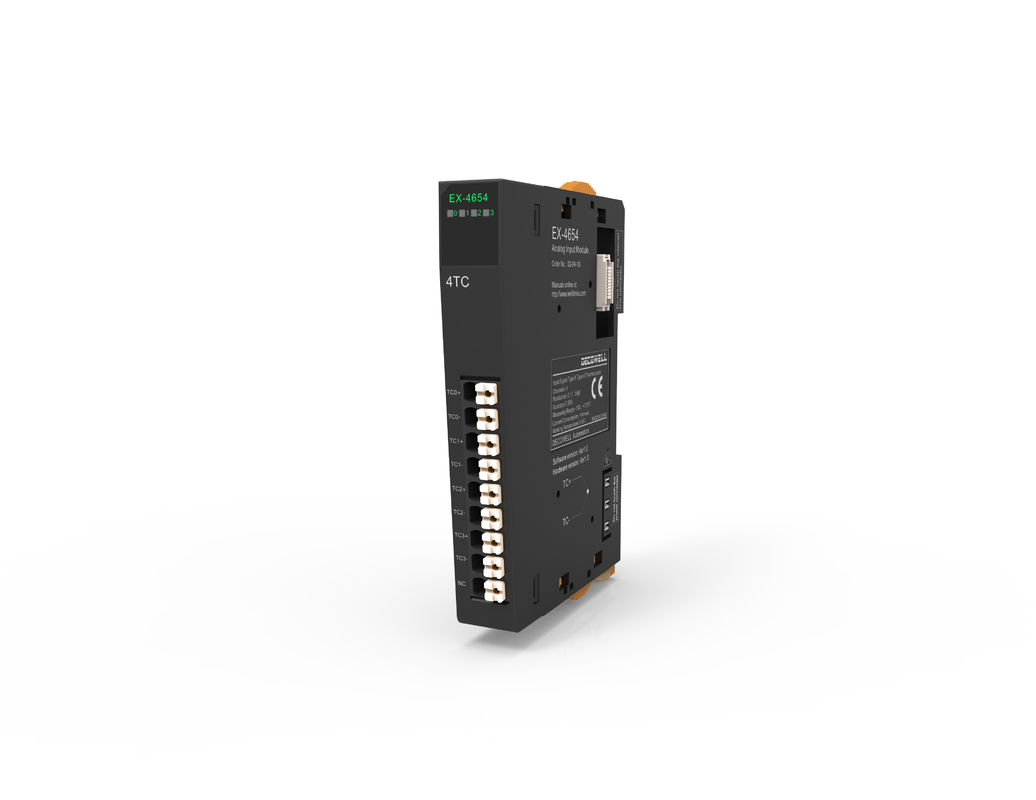

EX-4654 High Precision Thermocouple Input Module 4 Channel For Industrial Automation

Detail Information
Product Description
Detail Information
Highlight:

high precision thermocouple input module

,

thermocouple input module 4 channel

,

industrial automation thermocouple input module

Product Description
Product name Thermocouple (TC) Input module
Current Consumption 41mA
Number of Input Channel 4
Input filtering Configurable:1～40,Default:10
Connection mode NPN:0V DC(±3%)
Sensor type 2-wire
Input logic 0 signal K,J,T,E,N,S,R,B,C,
Temperature range Mv Voltage measurement/ Depending on the
measurement range of each sensor Default
Settings: Type K: -100 to +1370
Resolution 0.1℃/ digit
Isolated withstand voltage 0.005
Precision The 500V channels on the field side and the digitalside are not isolated
Isolated withstand voltage The 500V channels on the field side and the digital
side are not isolated
Dimensions Length, width and height:
90mm*67mm*14mm
Temperature range 0 ～ 55℃
Storing Temperature -20 ～ 85℃
Relative humidity 95% No Condensation
Protection grade IP20



EX-4654 High Precision Thermocouple Input Module 4 Channel For Industrial Automation 0
